Amateur radio

receiver ATS120 Pro

  • updated design in a compact package
  • enlarged built-in telescopic antenna
  • built-in decoder CW and DIGI

An updated version of the ATS120 Pro digital amateur radio receiver on an ESP32 microcontroller with a 240 x 320 dot color touch screen and a radio path on the SI4732A10 chip

Video overview of the receiver ATS120 Pro with firmware H-RADIO 4.17 AIR

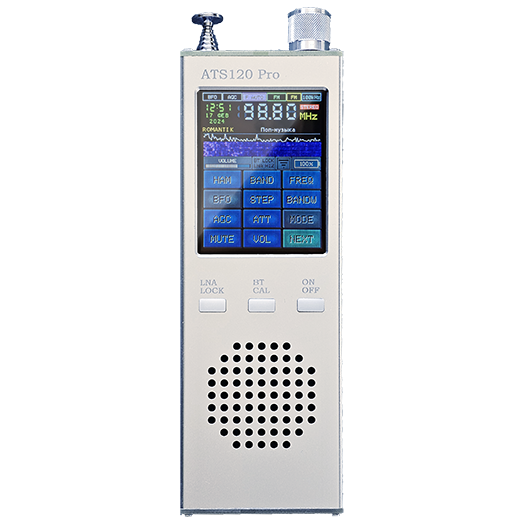

Compact pocket size 140x50x20 mm. Lightweight aluminum case with silver anodized finish that hides scratches.

240 x 320 dots color graphic screen with touch control.

Special strap attachment holes for wearing on the wrist.

Switch to save battery power during storage.

Built-in lithium battery with a capacity of 2000mAh.

Change the brightness or turn off the screen completely for even more autonomy and reduce interference.

40mm speaker with high-quality loud sound. Even more convenience. Use Bluetooth wireless headphones to listen to stereo programs on the FM broadcast band.


Built-in telescopic antenna 120 cm.

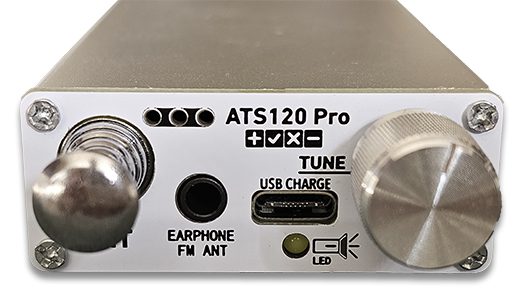

The encoder handle is located on the upper end wall for the convenience of frequency adjustment or volume control without taking the device out of your pocket.

3.5mm headphone jack.

Type-C connector for charging and connecting to a PC.

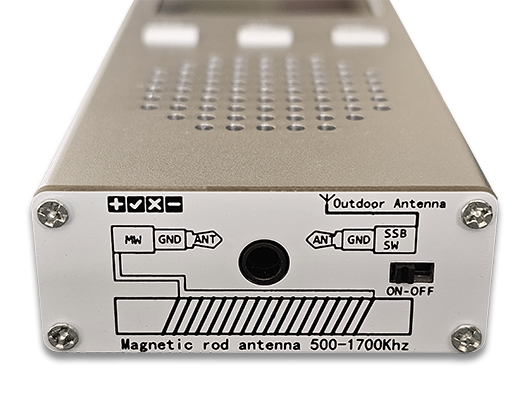

3.5mm jack for connecting an external receiving antenna.

Frequency range:
132kHz - 30000kHz AM, SYNC, SSB, CW, DIGI;
64MHz - 108MHz FM, RDS.

Adjustable bandwidth from 500Hz to 6000Hz depending on the modulation.

Automatic search and storage of broadcast stations in memory.

The frequency setting accuracy for SSB is up to 1Hz.

The RDS function for the FM band (station name and current program, radio station type and local time).


Learn more about the H-RADIO firmware features

Lists of ranges according to standards and regional specifics. Division into broadcast and amateur radio bands.

Fast frequency input. Two fast-switching VFO.

Unlimited memory of stations with grouping by receiving area. FM mode for quick switching between saved FM stations for a selected location.

Channel mode for CB band.

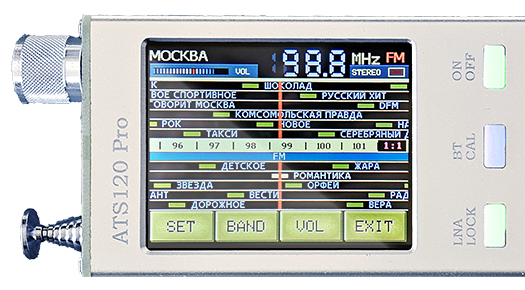

Retro scale with grouping of ranges according to reception conditions. Up-to-date information about the passage of waves from the Internet.

Range scanner with histogram display for fast detection of operating stations.

Extensive customization and customization options.


Decoding Morse code with speed display.

Decoding DIGI:
- RTTY (45.45 / 50 / 75 baud);
- PSK (BPSK32 / BPSK63);
- FT4 и FT8.

Waterfall indicator.

RF pre-amplifier for receiving weak signals and improving the reception quality of broadcast stations.

Built-in Wi-Fi and Bluetooth antennas with 5dBi gain.


The scope of delivery:
- receiver ATS120 Pro;
- cable USB;
- stylus.

It is packed in a cardboard box with air inserts that protect the receiver during transportation.
